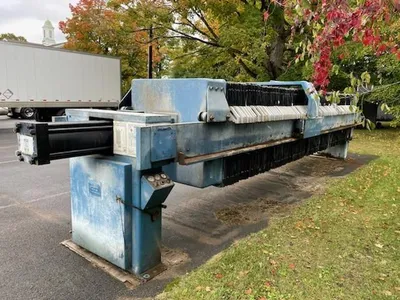

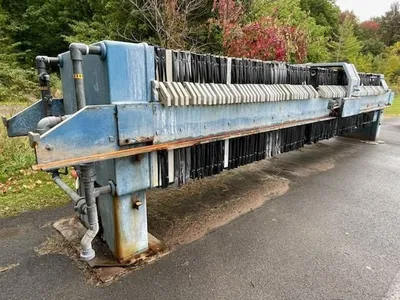

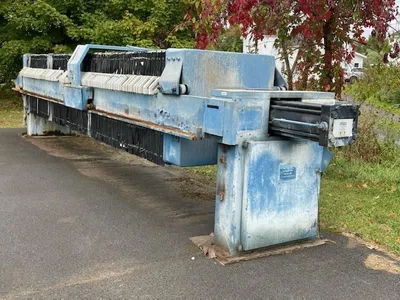

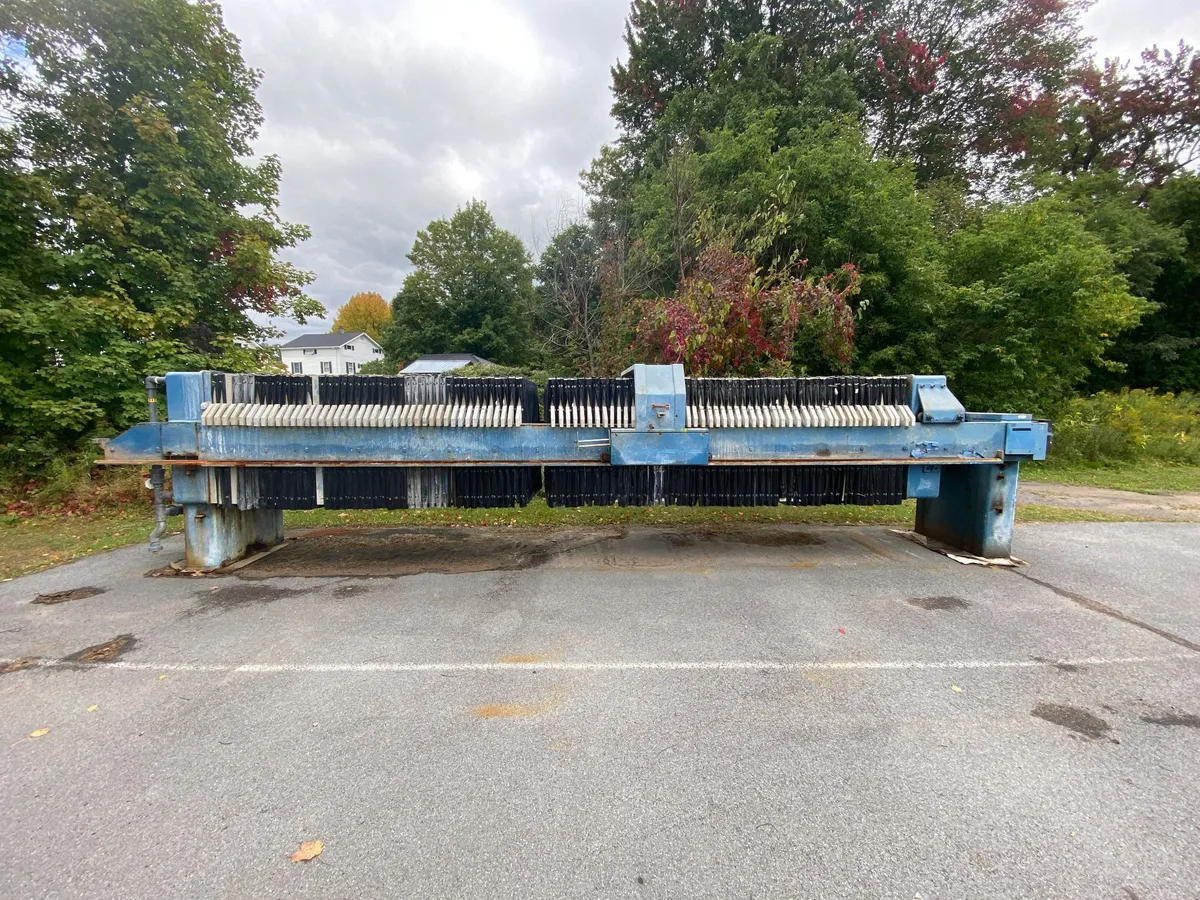

USED 1200MM 125 CU FT JWI NON-GASKETED FILTER PRESS

Description

USED 1200MM 125 CU FT JWI NON-GASKETED FILTER PRESS
Make: JWI
Model: 1200-125-32-NG
Dimensions: 374” L x 70” W x 80” H
Plate Type: Non-Gasketed Recessed Chamber Polypropylene
Plate Size: 1200mm x1200mm
Capacity: 125 ft3
Qty of Plates: 96
Filter Cake Thickness: 32 mm
Cylinder Size: 10” x 30”
Weight of Filter Plates: 106 lbs. each
Weight of Filter Press Empty: 35,200 lbs.
Inlet: 4" Center feed
Discharge: 2" CPVC Manifold
Air Service: Intermittent 18 scfm @ 100 psig
Hydraulic Design Pressure: 3200 psig
Hydraulic Operating Pressure: 2800 psig
Sludge Feed Maximum Operating Pressure: 100 psig
Filter cloths not included.
$42,900 AS-IS, WHERE IS CONDITION (Reconditioning is available, see below)
Ready to ship. Provide zip code for freight rate.

**Reconditioning available if interested - COST OF UNIT WITH RECONDITIONING IS $94,000**
RECONDITIONING INCLUDES:
- The press frame and carbon steel components will be sandblasted and finished with a high-solids epoxy safety blue coating
-The semi-automatic plate shifter frame will be sandblasted and recoated, with all new pneumatic components installed to ensure like-new condition
-The filter plates will be power washed and cleaned of debris (filter cloths NOT included).
-A new hydraulic system will be installed, utilizing the existing hydraulic oil reservoir
-The hydraulic cylinder will be removed and professionally rebuilt by a specialized cylinder repair company
-All hydraulic and pneumatic systems will be fully tested prior to shipment to confirm manufacturer specifications
